Design: Job Template Management Web based Print Job (message) designer is used to design and download print jobs to a connected printer. Jobs can also be downloaded to a USB stick that can be used to download print jobs to non-connected printers.

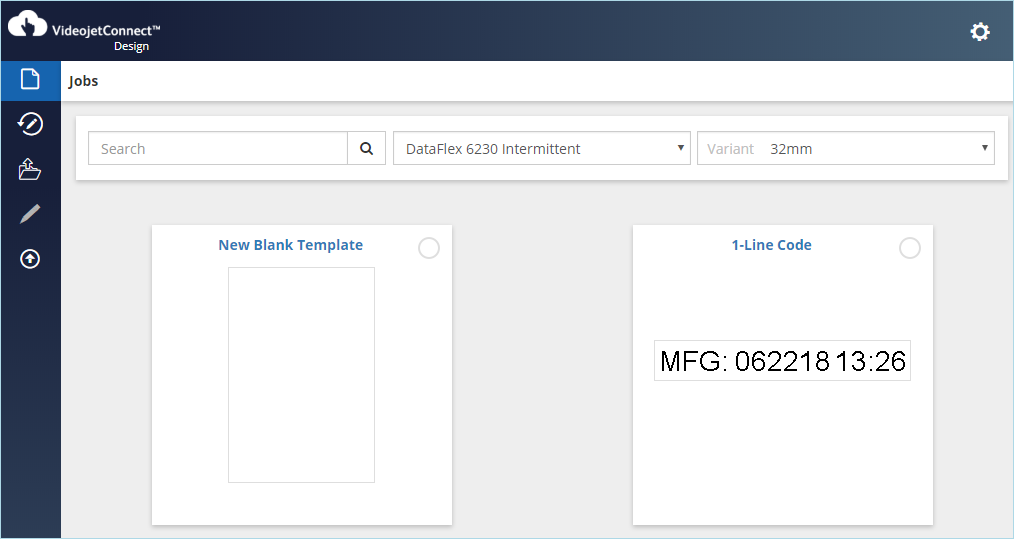

Design
Clicking
on the Black Menu will open the Design: Job Template Management Designer.
Use VideojetConnect Design to create Printer Jobs.
Refer to VideojetConnectDesign Documentation for instructions on job creation.

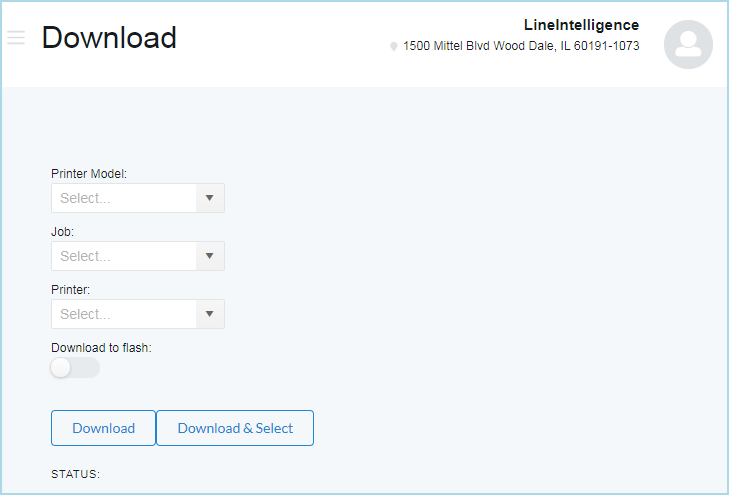

Download
Clicking
on the Black Menu will open the Design: Job Template Management Designer Download.
Use the Download option to download printer jobs from VideojetConnect Designer to VRS connected printers.
- Printer Model: Select the printer type from the dropdown list.
- Job: Select the printer job from the dropdown list.
- Printer: Select the printer from the dropdown list.
- Download to Flash: Move the slider right to download the printer job to a USB Memory Stick. If the slider is to the left, the printer job can be downloaded to the selected VRS connected printer.
- Download Button: Clicking this button will just download the job to the printer but not select the job for print.
- Download & Select: Clicking this button will download the job to the printer and select the job to print.
- Status: Displays the status of the download.
